K21951925-0

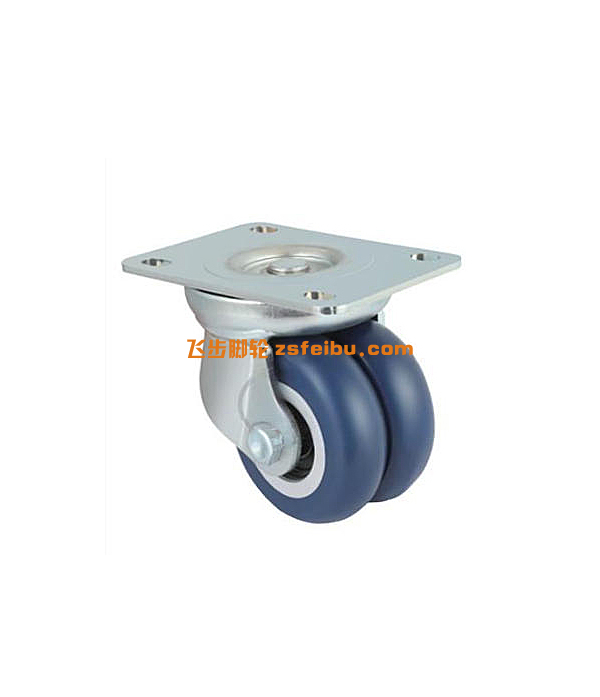

| AGV/AMR Caster Wheel | |||||||
| Wheel Material | Aluminum Core Polyurethane | ||||||
| Wheel Surface Hardness | 95±3° shore A | ||||||
| Surface Treatment | Electrogalvanized | ||||||
| Model | Wheel Diameter (mm) | Tread Width (mm) | Mounting Height (mm) | Eccentricity (mm) | Swivel Radius (mm) | Load (KG) | |
|---|---|---|---|---|---|---|---|
| 2" | 50 | 23*2 | 72.5 | 20 | 50 | 200 | |
| 2.5" | 65 | 23*2 | 86.5 | 20 | 55 | 240 | |
| 3" | 75 | 23*2 | 96.5 | 20 | 60 | 280 | |
| 4" | 85 | 23*2 | 106.5 | 20 | 65 | 300 | |
