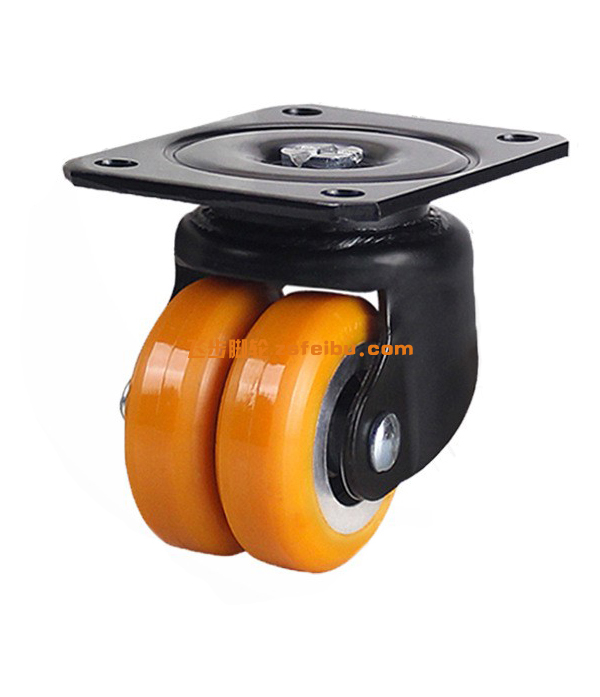

| AGV/AMR Caster Wheel | |||||||
| Steering mechanism with dual bearing combination 6061 aluminum wheel core, high-quality CPU tread, wear-resistant, heat-resistant Small swivel radius, low steering resistance Capable of operating at speeds ≤ 5.4 KM/H under rated load. | |||||||
| Wheel Material | Aluminum Core Polyurethane (Yellow) | ||||||
| Wheel Surface Hardness | 95±3° shore A | ||||||
| Surface Treatment | Electrogalvanized | ||||||
| Extended Function | Anti-Static: Resistance ≤ 1010Ω | ||||||
| Model | Wheel Diameter (mm) | Tread Width (mm) | Mounting Height (mm) | Eccentricity (mm) | Swivel Radius (mm) | Load (KG) | |
|---|---|---|---|---|---|---|---|
| 2" | 50 | 23*2 | 85 | 20 | 55 | 150 | |
| 2.5" | 65 | 23*2 | 95 | 20 | 58 | 180 | |
| 3" | 75 | 23*2 | 105 | 20 | 62.5 | 200 | |
