K11301925-0

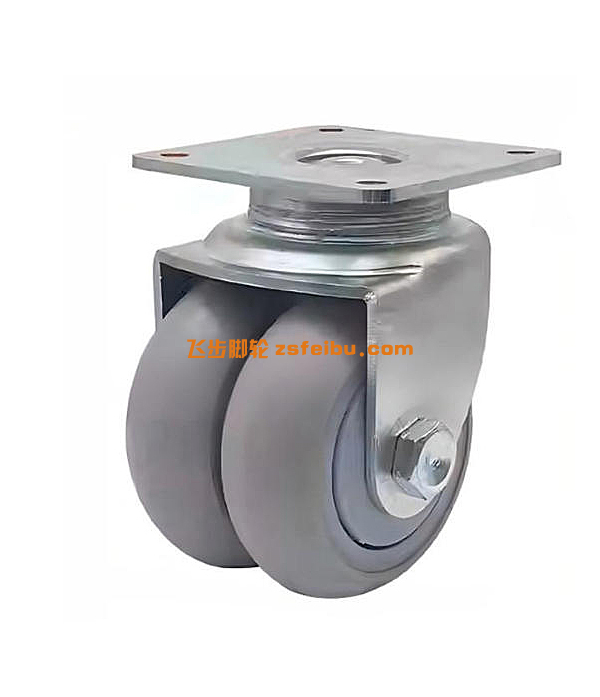

Bearing Steering Mechanism
Low mounting height, small swivel radius
Lightweight, highly elastic, quiet, impact-resistant
Dual-wheel structure, low starting and steering resistance
High coefficient of friction ensures grip when moving on smooth surfaces
| Wheel Material | Plastic Core Synthetic Rubber (Gray) |
|---|---|
| Wheel Surface Hardness | 65±3° shore A |
| Surface Treatment | Electrogalvanized |
| Model | Wheel Diameter (mm) | Tread Width (mm) | Mounting Height (mm) | Eccentricity (mm) | Swivel Radius (mm) | Load |
|---|---|---|---|---|---|---|
| 2" | 50 | 23*2 | 75 | 15 | 55 | 50kg |
| 2.5" | 65 | 23*2 | 86.5 | 15 | 58 | 55kg |
| 3" | 75 | 23*2 | 96.5 | 15 | 62.5 | 60kg |
