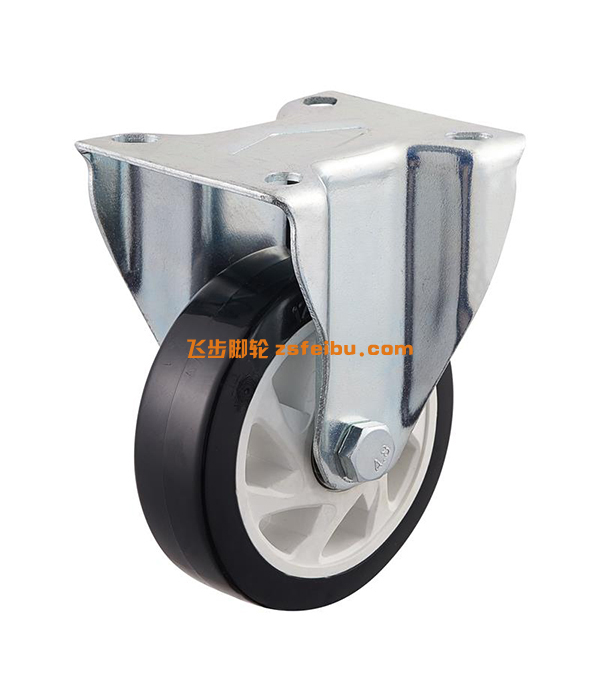

F37480736-0
| Wheel Diameter (mm) | Wheel Width (mm) | Mounting Height (mm) | Thread Size | Base Plate Size (mm) | Hole Spacing (mm) | Hole Diameter (mm) | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|
| 75 | 38 | 111 | M16x40 | 101x86 | 85x65 | 11 | 170 |
| 100 | 38 | 136 | M16x40 | 113x100 | 95x80 | 11 | 210 |
| 125 | 38 | 163 | M20x40 | 113x100 | 95x80 | 11 | 280 |
| 150 | 38 | 190 | M20x40 | 113x100 | 95x80 | 11 | 310 |
