H23462552-0

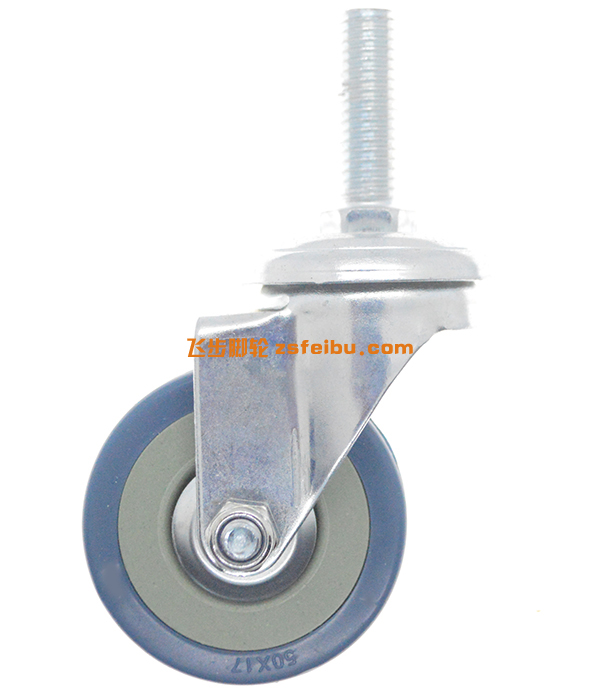

灰胶脚轮

Model	Wheel Material	Diameter [mm]	Wheel Width [mm]	Rotation Radius	Installation Height	Base Plate Size		Mounting Holes		Bore [mm]	Load Capacity [kg]
Model	Wheel Material	Diameter [mm]	Wheel Width [mm]	Rotation Radius	Installation Height	Fixed	Swivel	Fixed	Swivel	Bore [mm]	Load Capacity [kg]
2"	PVC	50	17	45	71	68×47	50×50	53×33	35×35	6.5	35
2.5"	PVC	65	21	63	91	100×58	65×65	81×40	48×48	6.5	40
3"	PVC	75	21	65	101	100×58	65×65	81×40	48×48	6.5	50
4"	PVC	100	27	84	128	100×58	76×76	81×40	53×53	8.3	60
5"	PVC	125	27	97	154	100×58	76×76	81×40	53×53	8.3	70
