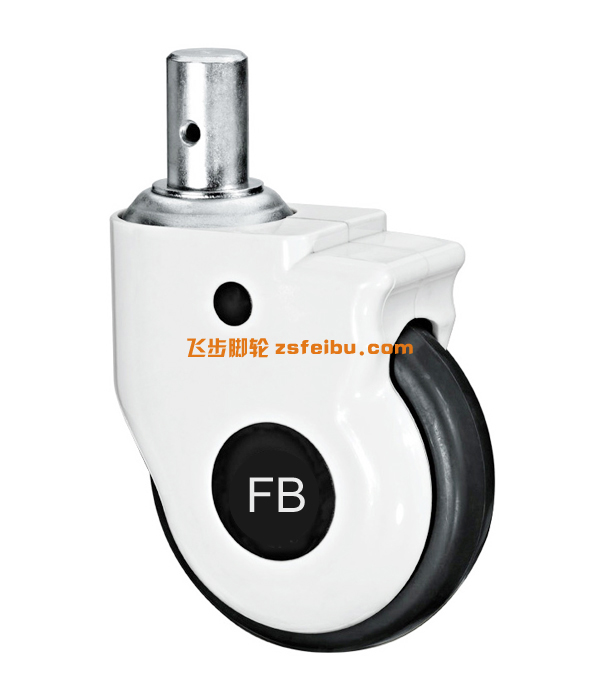

E46190156-0
| Size Specification | Mounting Height (mm) | Base Plate Size (mm) | Hole Spacing (mm) | Wheel Diameter (mm) | Wheel Width (mm) | Hole Diameter (mm) | Screw Rod Size (mm) | Insert Rod Size (mm) | Insert Rod Hole Diameter (mm) | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 inch | 105 | 70*53 | 58*43 | 75 | 25 | 6 | 12*25 | / | / | 70 |
| 4 inch | 130 | 95*62 | 75*45 | 100 | 32 | 8 | 12*25 | 28*40，22*58 | M8 | 80 |
| 5 inch | 160 | 95*62 | 75*45 | 125 | 32 | 8 | 12*25 | 28*40，22*58 | M8 | 100 |
