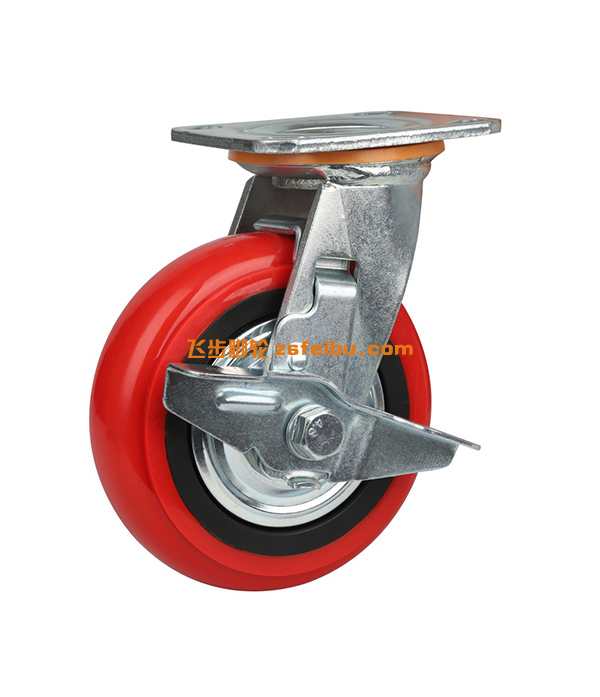

C87751032-6--Zhongshan Feibu Caster Factory

C87751032-6

重型脚轮

Specification	Caster Material	Diameter [mm]	Wheel Width [mm]	Installation Height [mm]	Rotation Radius [mm]	Base Plate Size [mm]	Mounting Holes [mm]	Hole Diameter [mm]	Load Capacity [kg]
Specification	Caster Material	Diameter [mm]	Wheel Width [mm]	Installation Height [mm]	Rotation Radius [mm]	Base Plate Size [mm]	Mounting Holes [mm]	Hole Diameter [mm]	PP	PA	NP	PU	PVC	TPR	PL
4 inch	PP,PA,NP,PU,PVC,TPR,PL	100	50	143	84	113×98	84×71	11.2	250	300	250	300	250	250	310
5 inch	PP,PA,NP,PU,PVC,TPR,PL	125	50	163	102	113×98	84×71	11.2	275	340	275	340	275	275	350
6 inch	PP,PA,NP,PU,PVC,TPR,PL	150	50	190	120	113×98	84×71	11.2	300	365	300	365	300	300	375
8 inch	PP,PA,NP,PU,PVC,TPR,PL	200	50	240	143	113×98	84×71	11.2	320	385	320	385	320	320	395
Note: PP=Polypropylene, PA=Nylon, NP=Rubber, PU=Polyurethane, PVC=Polyvinyl Chloride, TPR=Thermoplastic Rubber, PL=Cast Iron Wheel.
