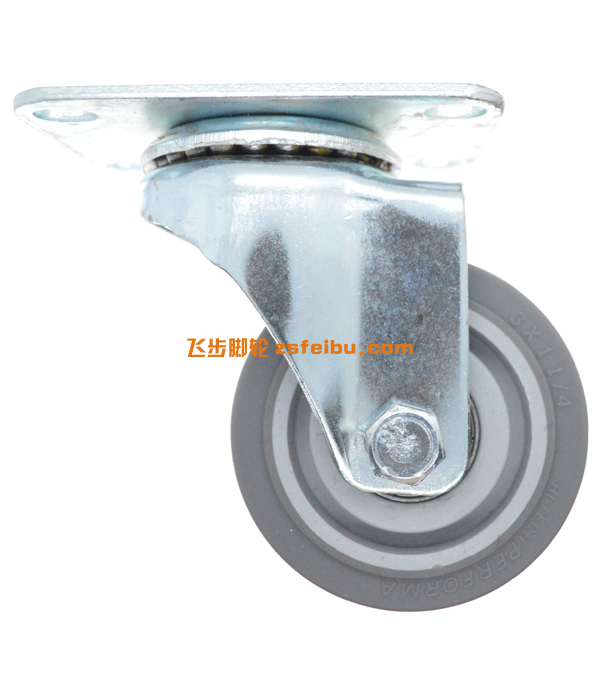

B57585141-3
| Specification | Caster Material | Diameter | Wheel Width | Installation Height | Rotation Radius | Base Plate Size | Mounting Holes | Screw Rod Specification | Hole Diameter | Load Capacity [kg] | ||||||
| PP | PA | NP | PU | PVC | TPR | PL | ||||||||||
| 2.5 inch | PP,PA,NP,PU,PVC,TPR,PL | 65 | 32 | 91 | 64 | 92×64 | 73×45 | M10/M12*30 | 8.5 | 70 | 75 | 70 | 75 | 70 | 70 | 85 |
| 3 inch | PP,PA,NP,PU,PVC,TPR,PL | 75 | 32 | 102 | 66 | 92×64 | 73×45 | M10/M12*30 | 8.5 | 75 | 80 | 75 | 80 | 75 | 75 | 90 |
| 3.5 inch | PP,PA,NP,PU,PVC,TPR,PL | 90 | 32 | 119 | 74 | 92×64 | 73×45 | M10/M12*30 | 8.5 | 80 | 85 | 80 | 85 | 80 | 80 | 95 |
| 4 inch | PP,PA,NP,PU,PVC,TPR,PL | 100 | 32 | 128 | 77 | 92×64 | 73×45 | M10/M12*30 | 8.5 | 85 | 90 | 85 | 90 | 85 | 85 | 100 |
| 5 inch | PP,PA,NP,PU,PVC,TPR,PL | 125 | 32 | 152 | 91 | 92×64 | 73×45 | M10/M12*30 | 8.8 | 95 | 100 | 95 | 100 | 95 | 95 | 110 |
| Note: PP=Polypropylene, PA=Nylon, NP=Rubber, PU=Polyurethane, PVC=Polyvinyl Chloride, TPR=Thermoplastic Rubber, PL=Cast Iron Wheel. | ||||||||||||||||
